HD 12.3inch E-Mirror Side Blind Spot Monitor System with Double Lens Camera
产品介绍
HD 12.3inch E-Mirror Side Blind Spot Monitor System with Double Lens Camera
Spec:
Item | 12.3inch Electronic Rearview Mirror | |
Chip sensor | Hiss HI3520 (V300) | |
System language | Chinese/English (others can be customized) | |
Video compression format |
| |
Brightness | 850cd/m2 | |
Contrast | 800:1 | |
OSD | Support time, date, channel characters, partition frame, vehicle information and other image overlay | |
Video and record Image system
| Video input | 2video AHD1080P/960P/720P ,960H/CVBS mixed input； support PAL and NTSC system auto display |
Display | Multi-picture mode combination display, support manual/voltage trigger full screen display function | |
Resolution | 1920*1080 、1280*720 、1024*768 | |
Recording resolution | 1920*1080 | |
Video | Support 1080P/960P/720P/CVBS | |
Video recording | Automatic power-on video recording | |
Trigger input | 2 video I/O trigger， support 12-24V, Power triggered full screen display | |
Storage |
SD card
|
Support 2-512G SD card，loop recording
|
Upgrade method | Support SD card recording upgrade | |
Recording | Real-time storage, no frame loss, no missing seconds | |
Video playback | Video search | Can choose the latest three days, the latest week, the latest two weeks, the latest month, all, etc. |
playback | 2 Video synchronous playback supports pause, fast forward, and fast rewind | |
Support 2, 4, 8 times fast forward or backward | ||
Power supply and consmption |
|
Adaptive wide power input, with low voltage, overvoltage, reverse short-circuit protection functions;
|
Power input | DC:+15V ~ +35V | |
|
| |
consumption | ≤16W | |
Working environment | temperature | -30℃ to +70℃ |
humidity | 20% to 80% | |
Other | Camera | IMX307/View angle:90degreer/150degree |
12.3inch mirror:

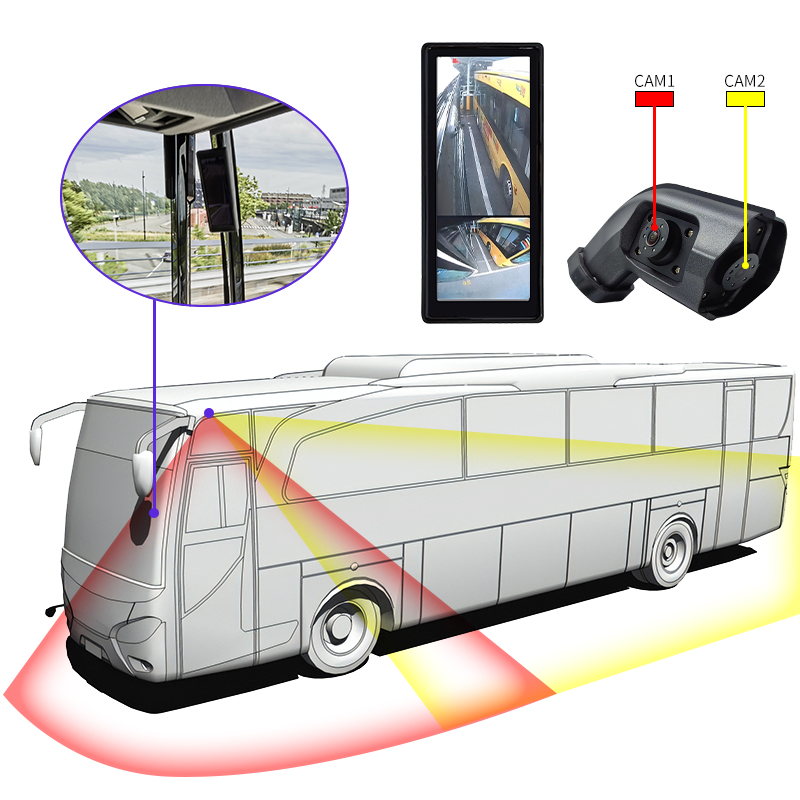

Installing 12.3-inch electronic rearview mirror side blind monitor system,can bring the following advantages:
Wider field of view: Electronic rearview mirrors typically provide a wider field of view than traditional rearview mirrors, as they are not limited by vehicle structure and can be equipped with wider angle cameras.
Improving safety: In adverse weather conditions such as rainy, snowy, foggy weather, etc., electronic rearview mirrors can provide clearer rear visibility and reduce the risk of accidents caused by unclear visibility.
Reduce wind resistance and noise: As electronic rearview mirrors do not need to extend outside the car like traditional mirrors, they can reduce the vehicle's wind resistance and noise, which helps improve fuel efficiency.

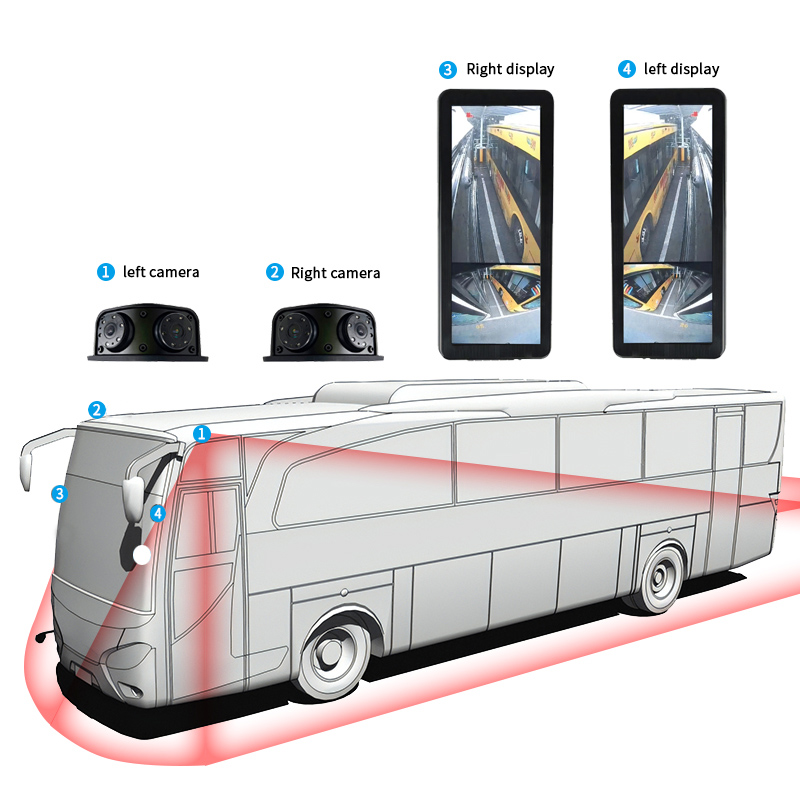

Reduce blind spots: The electronic rearview mirror system can reduce or eliminate blind spots and improve driving safety by installing multiple cameras at different positions on the vehicle.
